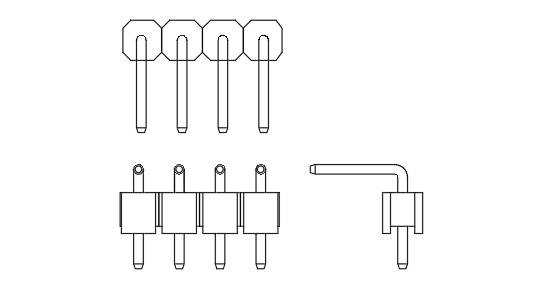

Pin Header, 2.54mm Pitch, Single-Row, R/A DIP
Product No
F3H04xxx-217xxxH
Product Description
2.54mm Pitch, Single-Row, R/A DIP
Physical Characteristic:
1. Materials:
1.1 Housing: NY6T; Color: Black
1.2 Contact: Brass
2. Plating:
2.1 Contact: Gold flash plated over Nickel
3. Electrical characteristics:
3.1 Voltage rating: 150V DC
3.2 Current rating: 3.0 AMP.
3.3 Contact resistance: 4.0 mΩ Max.
3.4 Insulation resistance: 1000 MΩ Min.
3.5 Dielectric Withstanding Voltage: AC 100V for 1 minute
3.6 Operating Temperature: -55ºC ~ +105ºC
