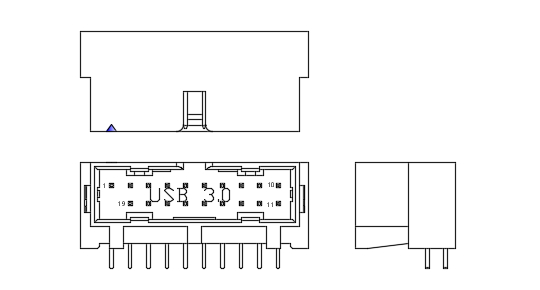

USB3.0 Box Header, 2.0mm Pitch, Dual-Row, 2x10Pin, R/A DIP
Product No
FSF20xxx-214x3xH
Product Description
2.0mm Pitch, Dual-Row, R/A DIP, 2x10Pin, Re(#20), 9.35H
Physical Characteristic:
1. Material:
1.1 Housing: PA6T+30%G/F; UL94V-0; Color:Black
1.2 Cover: PA6T+30%G/F; UL94V-0; Color:Black
1.3 Contact: Brass; T=0.40mm
2. Finish:
2.1 Contact: Gold plating on contact area;
matte Tin 100u" min on solder area;
50u" min. Nickel underplating over all.
3. Electrical characteristics:
3.1 Voltage/Current Rating: 250V/0.5A per pin min.
3.2 Insulation Resistance: 1000 MΩ min.
3.3 Contact Resistance: 30 mΩ max.
3.4 Dielectric Withstand Voltage: 500V AC R.M.S
3.5 Operating Temperature: -25°C to +85°C.
