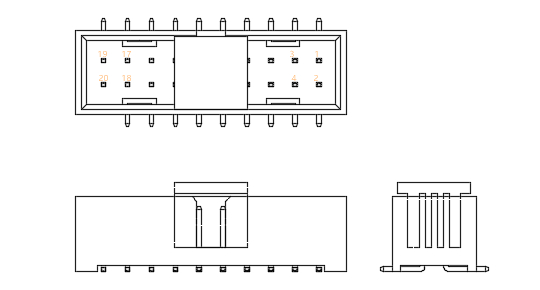

USB3.0 Box Header, 2.0mm Pitch, 2x10Pin, Dual-Row, 180D SMD
Product No
FSF20xxx-A014xxH
Product Description
2.0mm Pitch, Dual-Row, 180D SMD, 2x10Pin, Re(#20), 6.35H
Physical Characteristic:
* MATERIAL:
Housing: LCP; UL94V-0; Color: Blue
Contact: Brass,
* FINISH:
Contact: Au over 30u" min. Nickel
* SPECIFICATION:
Current Rating: 2 Amp
Operating Temperature: -40°C ~ +85°C.
Contact Resistance: 20 mΩ Max.
Insulation Resistance: 1000 MΩ Min. ;
Withstand Voltage: AC 800V
