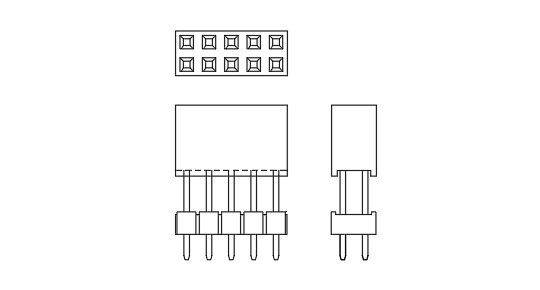

Female Header, 2.0mm Pitch, Stacking, Dual-Row, Vertical DIP
Product No
6Kxxxxxx-CF01x
Product Description
2.0mm Pitch, Stacking, Dual-Row, 16.0H, Vertical DIP
Physical Characteristic:
1. Materials:
1.1 Housing: NY9T; Color: Black
1.2 Contact: Phosphor bronze
2. Plating:
2.1 Contact: Gold flash plated over Nickel
3. Electrical characteristics:
3.2 Current rating: 2.0 AMP.
3.3 Contact resistance: 20 mΩ Max.
3.4 Insulation resistance: 1000 MΩ Min.
3.5 Dielectric Withstanding Voltage: AC 500V
3.6 Operating Temperature: -40ºC ~ +125ºC
