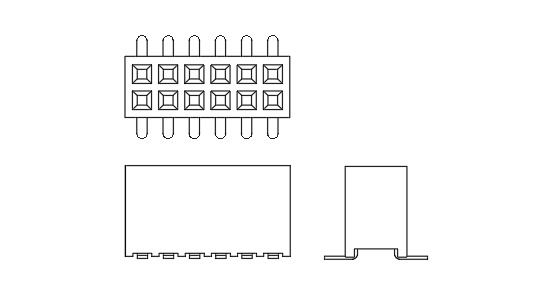

Female Header, 1.27mm Pitch, Dual-Row, Vertical SMD
Product No
F2Dxxxxx-A120xxH
Product Description
1.27mm Pitch, Dual-Row, Vertical SMD, 4.3H
Physical Characteristic:
1. Materials:
1.1 Housing: LCP; Color: Black
1.2 Contact: Copper alloy
2. Plating:
2.1 Contact: Gold flash plated over Nickel
3. Electrical characteristics:
3.2 Current rating: 1.0 AMP.
3.3 Contact resistance: 20 mΩ Max.
3.4 Insulation resistance: 1000 MΩ Min.
3.5 Dielectric Withstanding Voltage: AC 300V
3.6 Operating Temperature: -55ºC ~ +125ºC
