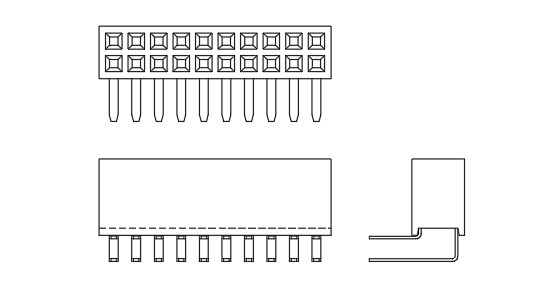

Female Header, 1.27mm Pitch, Dual-Row, R/A DIP
Product No
F2Dxxxxx-2430xxH
Product Description
1.27mm Pitch, Dual-Row, R/A DIP, 4.3H
Physical Characteristic:
1. Materials:
1.1 Housing: LCP; Color: Black
1.2 Contact: Phosphor bronze
2. Plating:
2.1 Contact: Gold flash plated over Nickel
3. Electrical characteristics:
3.1 Current rating: 1.0 AMP.
3.2 Insulation resistance: 5000 MΩ Min.
3.3 Dielectric Withstanding Voltage: AC 500V
3.4 Operating Temperature: -40ºC ~ +105ºC
