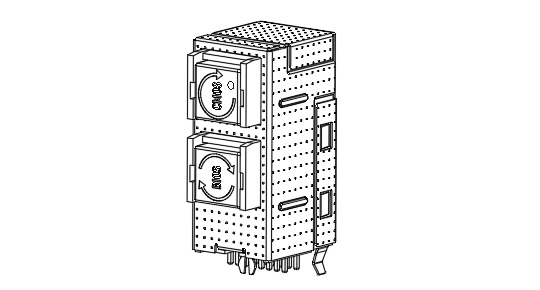

LED Switch Dual-Port, R/A DIP
產品型號
DG018xxx-2010xxH
產品敘述
Dual-Port, 28.4H, R/A DIP, 16Pin
Physical Characteristic:
1. Materials:
1.1 Housing: PA66, UL 94V-0; Color: Black
1.2 Cover: PA66, UL 94V-0; Color: Black
1.3 Terminal: Brass
1.4 Shell: Stainless steel
1.5 Spring: Stainless steel
2. Plating:
2.1 Terminal: Gold flash plated
2.2 Shell: Nickel plated
3. Electrical characteristics:
3.1 Voltage rating: 30V DC
3.2 Current rating: 1.0A DC
3.3 Contact resistance:
3.3.1 Contact resistance for double switch: 250 milliohms Max.
3.3.2 Contact resistance final pin head: 1 ohms Max.
3.4 LED operating current: 20mA Max.
4. Mechanical characteristics:
4.1 Operation Force: 300±100gf
4.2 Ambient Temperature: -10ºC ~ +80ºC
