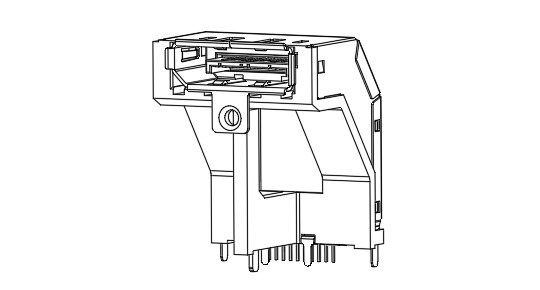

Displayport Hi Rise Type, 20Pin R/A SMD+DIP
產品型號
7C020xxx-CF59xxH
產品敘述
Hi Rise Type, 20Pin R/A SMD+DIP, 26.55H, W/Down Screw Tab
Physical Characteristic:
1. Materials:
1.1. Housing: LCP, UL94 V-0; Color: Black
1.2 Bracket: LCP, UL94 V-0; Color: Black
1.3 Terminal: Copper alloy
1.4 Shell: Stainless steel
1.5 EMI Shell(Back): Stainless steel
1.6 EMI Shell(Front): Stainless steel
1.7 Board lock: SPCC
2. Plating:
2.1 Terminal: Gold plating on contact area;
Matte Tin plating on solder area;
Nickel underplating overall.
2.2 EMI Shell(Back): Nickel plating overall
2.3 EMI Shell(Front): Nickel plating overall
2.4 Board Lock: Tin plating overall
3. Electrical characteristics:
3.1 Current rating: 0.5A Max.
3.2 Contact Resistance: 30Ωm Max.
3.3 Dielectric Withstanding Voltage: 500V AC R.M.S. for 1 minute
3.4 Mating Force: 4.5kgf Max
3.5 Unmating Force: 1.0kgf Min.
3.6 Operating Temperature: -25ºC ~ +85ºC
3.7 Durability: 10000 cycles.
