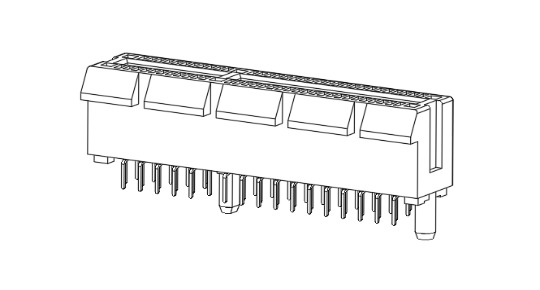

PCIe 64Pin, Vertical, DIP
產品型號
1B064xxx-BC00H
產品敘述
64Pin, W/Post, Tail Length(2.5)
Physical Characteristic:
1. Materials:
1.1. Housing: LCP+30% G/F, UL94 V-0; Color: Black
1.2. Contact: C2680 EH
2. Plating:
2.1 Contact: Gold plating on contact area;
80u" Min. Tin on solder area;
30u" Min. Nickel underplating over all.
3. Electrical characteristics:
3.1 Current rating: 1.1 AMP per pin Min.
3.2 Insulation resistance: 1000 Megohms
3.3 Contact resistance: 30 milliohms Max (initial)
3.4 Dielectric strength: 500V DC / 1 Min.
4. Mechanical characteristics:
4.1 Insertion force: 1.15N Max per contact pair
4.2 Withdrawal force: 0.15N Min per contact pair
4.3 Durability rating: 50 cycles
5. Environmental:
5.1 Temperature Range: -25°C to +85°C
