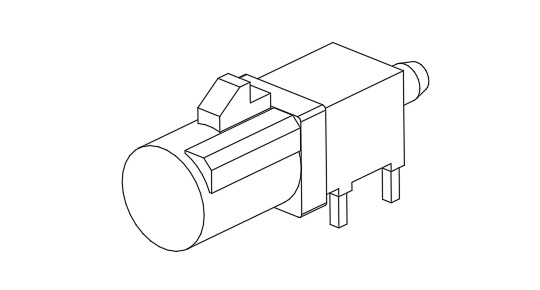

FAKRA SMB Male, Crimp, R/A DIP
產品型號
GB004xxx-2A7xxxH
產品敘述
Male, Crimp, R/A DIP, 4Pin, 7.5SQ, CH(3.75), Body(25.0L)
Physical Characteristic:
1. Materials:
1.1. Housing: HTN
1.2 Insulator: PTFE; Color: White
1.3 Body: Copper alloy
1.4 Contact: Copper alloy
1.5 Ferrule: Copper alloy
2. Plating:
2.1 Contact: Gold plating overall
2.2 Body: Nickel plating overall
2.3 Ferrule: Nickel plating overall
3. Electrical characteristics:
3.1 Impedance: 50 ohms.
3.2 Frequence rage: 0 - 6 GHz
3.3 Durability(Mating): 100 min
3.4 Plastic housing retention force: ≧110N
3.5 Temperature range: -40ºC ~ +105ºC
260ºC / 10sec.
1. Materials:
1.1. Housing: HTN
1.2 Insulator: PTFE; Color: White
1.3 Body: Copper alloy
1.4 Contact: Copper alloy
1.5 Ferrule: Copper alloy
2. Plating:
2.1 Contact: Gold plating overall
2.2 Body: Nickel plating overall
2.3 Ferrule: Nickel plating overall
3. Electrical characteristics:
3.1 Impedance: 50 ohms.
3.2 Frequence rage: 0 - 6 GHz
3.3 Durability(Mating): 100 min
3.4 Plastic housing retention force: ≧110N
3.5 Temperature range: -40ºC ~ +105ºC
260ºC / 10sec.
