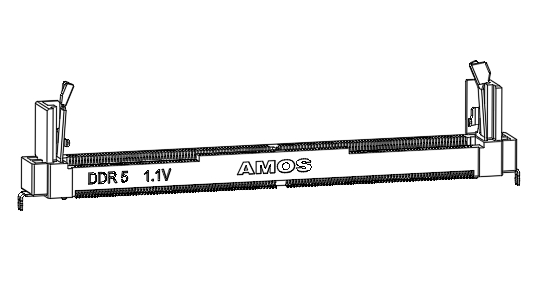

DDR5 SODIMM, Vertical SMD, Type-B, 262Pin

產品型號

1P262x03-R312LTH

產品敘述

Type-B, 262Pin, Vertical, SMD, 1.1V, Long Body, Long Latch, W/Fork

​Phsyical Characteristic:
1. Material:
  1.1 Housing:LCP GF30%; UL94V-0; Color: Black
  1.2 Contact: Copper alloy
  1.3 Metal Latch: SUS
  1.4 Peg: Phos-Bro

2. Plating;
 2.1 Contact(Contact Point): Gold flash (0.3u" Min.) ,Ni under plate (50u" Min.)
 2.2 Peg: Tin Plate(80u" Min.), Ni under plate
