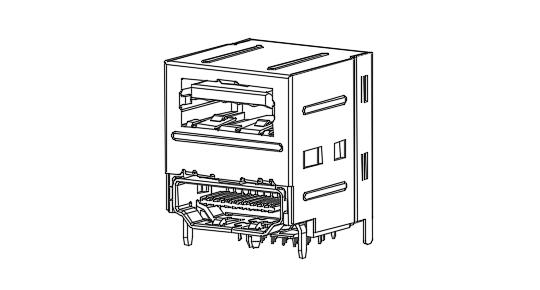

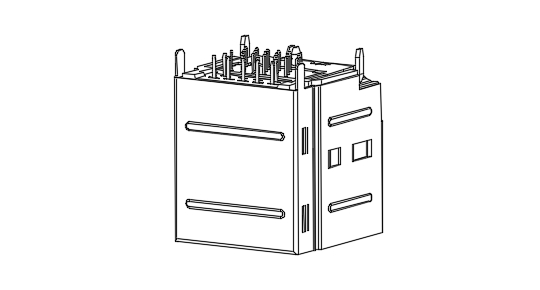

USB3.1(GEN2 10Gbps)+HDMI, R/A DIP
產品型號
33N28xxx-2134PxH
產品敘述
USB3.1(GEN2 10Gbps)+HDMI, 28Pin, R/A DIP, CH(12.0), 19.58H, W/Post
Physical Characteristic:
1. Material Specification:
1.1 USB Material:
1.1.1 Housing & Spacer: PBT
1.1.2 Contact: Copper alloy (C2680); T=0.2mm
1.2 HDMI Material:
1.2.1 Housing & Spacer: LCP+30%G.F.; UL94V-0; Color: Black
1.2.2 Contact: Copper alloy (C2680); T=0.2mm
1.2.3 Shell: Copper alloy (C2680); T=0.5mm
1.3 Shell: SUS430; T=0.25mm
2. Plating Specification:
2.1 Contact: Ni under plated,
Gold Flash plated on the functional area of contacts
and Tin plating on solder tail.
2.2 Shell: Nickel plating overall.
2.3 HDMI Shell: Ni Plating
3. Mechanical Performance:
3.1 USB Mechanical Performance:
3.1.1 Insertion Force: 35N max.
3.1.2 Removal Force: 10-35N initially；
0.8kgf min. after the specified insertion
Extraction or durability cycles
3.2 HDMI Mechanical Performance:
3.2.1 Insertion Force: 44.1N(4.5kgf) max.
3.2.2 Removal Force: 9.7N~39.2N.
4. Electrical Performance:
4.1 USB Electrical Performance:
4.1.1 Insulation Resistance: 100MΩ min
4.1.2 Dielectric Withstand Voltage: AC 100V for 1 minute
4.1.3 Contact Current Rating: 1.8A max.
4.2 HDMI Electrical Performance:
4.2.1 Current Rating: 0.5A per pin min.
4.2.2 Insulation Resistance: 100MΩ min.
4.2.3 Dielectric Withstand Voltage: AC 500V for 1 minute
5. Salt Spray: 24Hours pass.
6. Transmission Rate: USB3.1 GEN2 10Gbps
