USB3.1(GEN1 5G), Sink-Type, A-Type, R/A DIP
產品型號
33109xxx-21357xH
產品敘述

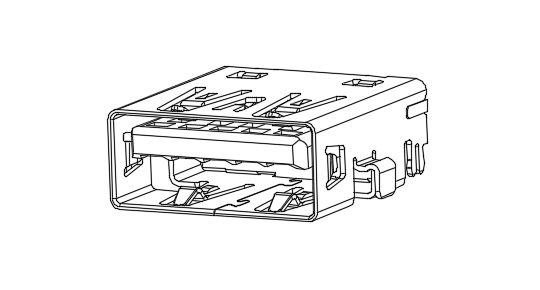

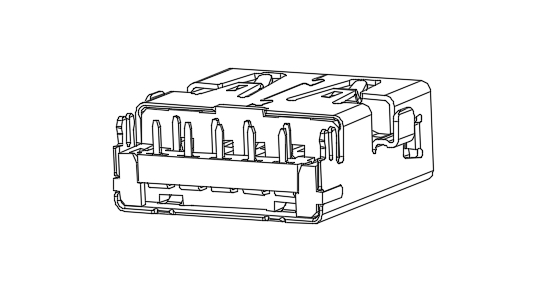

Sink-Type, A-Type, 9Pin, R/A DIP, CH(0.8), 14.0L
Physical Characteristic:
1.Material Specification:
1.1 Housing: PA9T; UL94V-0
1.2 Cover: PA9T; UL94V-0.
1.3 4Pin Terminal: C5191
1.4 5Pin Terminal: C2680
1.5 Shell: SUS201
2. Plating Specification:
2.1 4Pin Terminal:
Gold Plating on contact area; matte Tin plated on the solder tail;
Nickel underplating over all.
2.2 5Pin Terminal:
Gold Plating on contact area; matte Tin plated on the solder tail;
Nickel underplating over all.
2.3 Shell: Nickel plated
3. Electrical Characteristic:
3.1 Low Level Contact Resistance:
Initial: 30mΩ max. for VBUS and GND
50mΩ max. for all other contacts
3.2 Contact Current Rating: 1.8A for Pin1&4,
0.25A for all the other contacts.
3.3 Dielectric Withstanding Voltage: 100VAC R.M.S
3.4 Insulation Resistance: 100MΩ min.
4. Mechanical Characteristic:
4.1 Mating Force: 35N(3.57Kg) max.
4.2 Unmating Force:
Initial: 10N(1.02Kg) min.
After Test: 8N(0.816Kg) min.
4.3 Durability: 5000 Cycles
5. Operating Temperature: -55°C~+85°C
6. Transmission Rate: USB3.1 GEN1 5Gbps
1.Material Specification:
1.1 Housing: PA9T; UL94V-0
1.2 Cover: PA9T; UL94V-0.
1.3 4Pin Terminal: C5191
1.4 5Pin Terminal: C2680
1.5 Shell: SUS201
2. Plating Specification:
2.1 4Pin Terminal:
Gold Plating on contact area; matte Tin plated on the solder tail;
Nickel underplating over all.
2.2 5Pin Terminal:
Gold Plating on contact area; matte Tin plated on the solder tail;
Nickel underplating over all.
2.3 Shell: Nickel plated
3. Electrical Characteristic:
3.1 Low Level Contact Resistance:
Initial: 30mΩ max. for VBUS and GND
50mΩ max. for all other contacts
3.2 Contact Current Rating: 1.8A for Pin1&4,
0.25A for all the other contacts.
3.3 Dielectric Withstanding Voltage: 100VAC R.M.S
3.4 Insulation Resistance: 100MΩ min.
4. Mechanical Characteristic:
4.1 Mating Force: 35N(3.57Kg) max.
4.2 Unmating Force:
Initial: 10N(1.02Kg) min.
After Test: 8N(0.816Kg) min.
4.3 Durability: 5000 Cycles
5. Operating Temperature: -55°C~+85°C
6. Transmission Rate: USB3.1 GEN1 5Gbps
