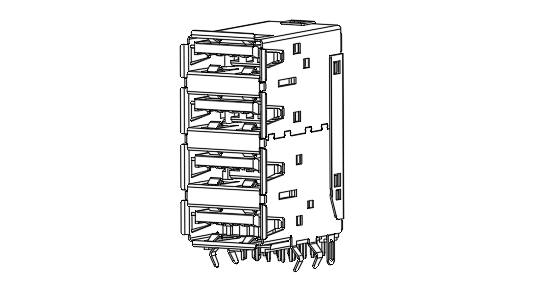

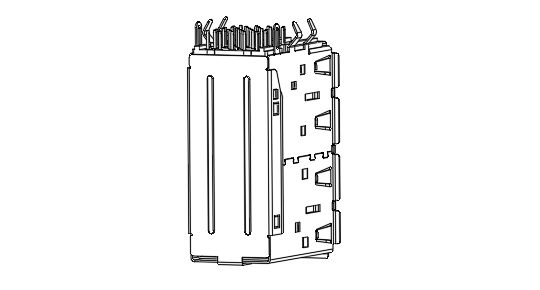

USB3.0 4-Port A-Type, R/A DIP
產品型號
33R36xxx-2121xxH
產品敘述
USB3.0 4-Port, A-Type, 36Pin, R/A DIP, 33.24H
Physical Characteristic:
1. Materials:
1.1. Housing: PA66+30% G/F, UL94 V-0
1.2 Cover: LCP+30% G/F, UL94 V-0; Color: Black
1.3 Bracket: PA66+30% G/F, UL94 V-0
1.4 Contact: Copper alloy
1.5 Shell: SUS430
1.6 Black Shell: SUS430
1.7 Middle Bullet: SUS301
2. Plating:
2.1 Contact: Gold plating in contact area(see order information);
& matte Tin plated & Nickel plated
2.2 Shell: Matte Tin plating on solder area no plant at other area
2.3 Black Shell: No plated
2.3 Middle Bullet: No plated
1. Materials:
1.1. Housing: PA66+30% G/F, UL94 V-0
1.2 Cover: LCP+30% G/F, UL94 V-0; Color: Black
1.3 Bracket: PA66+30% G/F, UL94 V-0
1.4 Contact: Copper alloy
1.5 Shell: SUS430
1.6 Black Shell: SUS430
1.7 Middle Bullet: SUS301
2. Plating:
2.1 Contact: Gold plating in contact area(see order information);
& matte Tin plated & Nickel plated
2.2 Shell: Matte Tin plating on solder area no plant at other area
2.3 Black Shell: No plated
2.3 Middle Bullet: No plated
