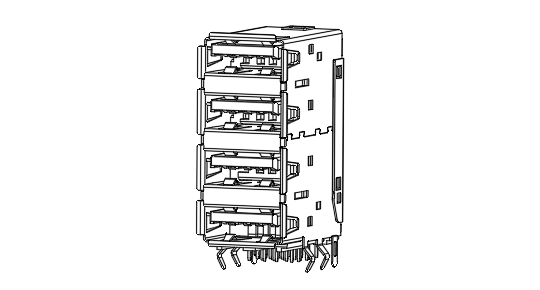

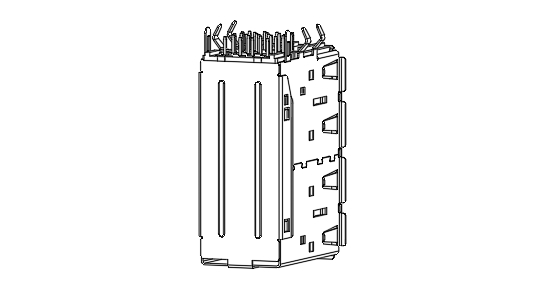

USB2.0*2+USB3.0*2 A-Type, R/A DIP
產品型號
30L26xxx-2129xxH
產品敘述
USB2.0*2+USB3.0*2, A-Type, 26Pin, R/A DIP, 33.73H
Physical Characteristic:
1. Materials:
1.1. Housing(USB2.0): PA66+30% G/F, UL94 V-0; Color: Black
1.2. Housing(USB3.0): PA66+30% G/F, UL94 V-0; Color: Blue
1.3 Cover: PA66+30% G/F, UL94 V-0; Color: Blue
1.4 Bracket: PA66+30% G/F, UL94 V-0; Color: Blue
1.5 Contact: Copper alloy
1.6 Shell: SUS301
1.7 Black Shell: SUS301
1.8 Middle Bullet: SUS301
2. Plating:
2.1 Contact: Gold plating on contact area;
& matte Tin plated & Nickel plated
2.2 Shell: Matte Tin plating on solder tails over Nickel
2.3 Black Shell: No plated
2.3 Middle Bullet: Nickel plating & copper plating
1. Materials:
1.1. Housing(USB2.0): PA66+30% G/F, UL94 V-0; Color: Black
1.2. Housing(USB3.0): PA66+30% G/F, UL94 V-0; Color: Blue
1.3 Cover: PA66+30% G/F, UL94 V-0; Color: Blue
1.4 Bracket: PA66+30% G/F, UL94 V-0; Color: Blue
1.5 Contact: Copper alloy
1.6 Shell: SUS301
1.7 Black Shell: SUS301
1.8 Middle Bullet: SUS301
2. Plating:
2.1 Contact: Gold plating on contact area;
& matte Tin plated & Nickel plated
2.2 Shell: Matte Tin plating on solder tails over Nickel
2.3 Black Shell: No plated
2.3 Middle Bullet: Nickel plating & copper plating
