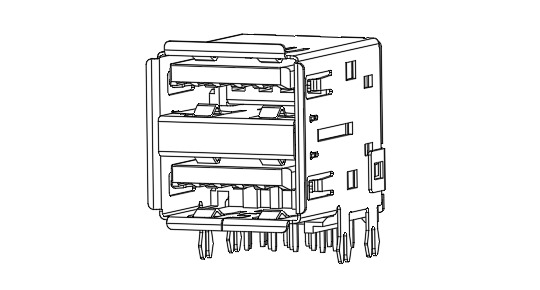

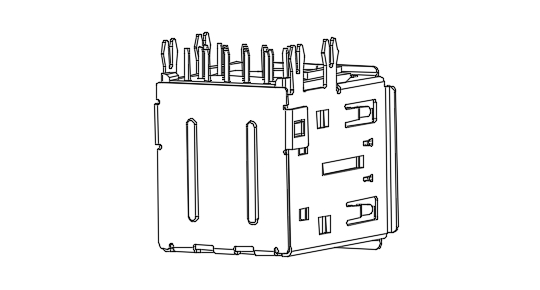

USB3.0 Dual-Port Type, A-Type, R/A DIP
產品型號
33518xxx-2122xxH
產品敘述
Dual-Port Type(8.5), A-Type, 18Pin R/A DIP, 15.44H
Physical Characteristic:
1. Materials:
1.1. Housing: PA6T+30% G/F, UL94 V-0; Color: Blue
1.2 Cover: PA6T+30% G/F, UL94 V-0; Color: Blue
1.3 Contact: Copper Alloy
1.4 Shell: SUS430
2. Plating:
2.1 Contact: Gold plating on contact area;
80u" matte Tin plating on solder area;
50u" Nickel underplating overall.
2.2 Shell: 60u" Min. matte Tin plating on solder tails
over 20u" Min Nickel
1. Materials:
1.1. Housing: PA6T+30% G/F, UL94 V-0; Color: Blue
1.2 Cover: PA6T+30% G/F, UL94 V-0; Color: Blue
1.3 Contact: Copper Alloy
1.4 Shell: SUS430
2. Plating:
2.1 Contact: Gold plating on contact area;
80u" matte Tin plating on solder area;
50u" Nickel underplating overall.
2.2 Shell: 60u" Min. matte Tin plating on solder tails
over 20u" Min Nickel
