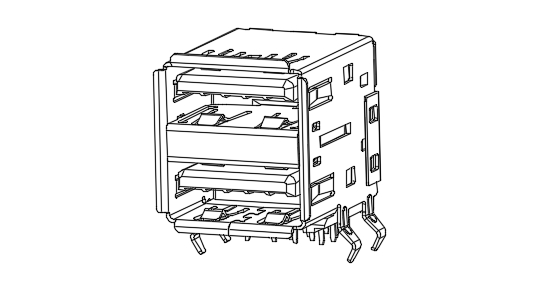

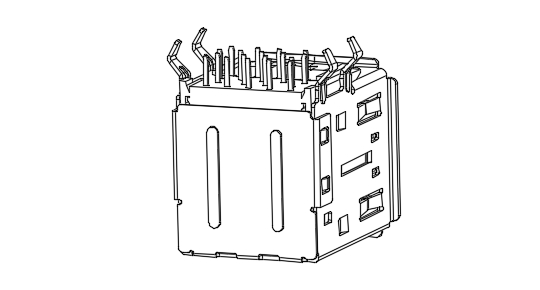

USB3.1(GEN2 10G), Dual-Port, A-Type, R/A DIP
產品型號
33518xxx-21246xH
產品敘述
Dual-Port, CH(8.5), A-Type, 18Pin, R/A DIP, 16.44H
Physical Characteristic:
1.Material Specification:
1.1 Cover: PA66+30%G.F; UL94V-0.
1.2 Housing: PA66+30%G.F; UL94V-0
1.3 Middle Bullet: SUS301; T=0.25.
1.4 Shell: SUS301; T=0.25.
1.5 Contacts: Brass(C2680); T=0.20.
2. Plating Specification:
2.1 Contacts:
Nickel 50u" min. under plated, Au(see order information)
plated on the functional area of contact.
and matte Tin 100u" plated on the solder tail.
2.2 Front Shell:
Ni 10u" min. under plated on solder area
60u" min. matte Tin plated on solder area.
2.3 Middle Bullet: Cleaning
3. Mechanical Performance:
3.1 Insertion Force: 3.5kgf max.
3.2 Extraction Force: 1.0-3.5kgf.
3.3 Durability: 5000 Cycles.
4. Electrical Performance:
4.1 Insulation Resistance: 100MΩ min.
4.2 Dielectric Withstand Voltage: AC 100V for 1 minute.
4.3 Rating: 1.8A
5. Wave Solder:
The connector shall be mounted on the PCB.
The temperature of the solder shall be 260+5.0/-0.0°C
and immersion duration: 10 seconds.
6. Transmission Rate: USB3.2 GEN2 10G bps
7. Salt Spray: 24 Hours
1.Material Specification:
1.1 Cover: PA66+30%G.F; UL94V-0.
1.2 Housing: PA66+30%G.F; UL94V-0
1.3 Middle Bullet: SUS301; T=0.25.
1.4 Shell: SUS301; T=0.25.
1.5 Contacts: Brass(C2680); T=0.20.
2. Plating Specification:
2.1 Contacts:
Nickel 50u" min. under plated, Au(see order information)
plated on the functional area of contact.
and matte Tin 100u" plated on the solder tail.
2.2 Front Shell:
Ni 10u" min. under plated on solder area
60u" min. matte Tin plated on solder area.
2.3 Middle Bullet: Cleaning
3. Mechanical Performance:
3.1 Insertion Force: 3.5kgf max.
3.2 Extraction Force: 1.0-3.5kgf.
3.3 Durability: 5000 Cycles.
4. Electrical Performance:
4.1 Insulation Resistance: 100MΩ min.
4.2 Dielectric Withstand Voltage: AC 100V for 1 minute.
4.3 Rating: 1.8A
5. Wave Solder:
The connector shall be mounted on the PCB.
The temperature of the solder shall be 260+5.0/-0.0°C
and immersion duration: 10 seconds.
6. Transmission Rate: USB3.2 GEN2 10G bps
7. Salt Spray: 24 Hours
