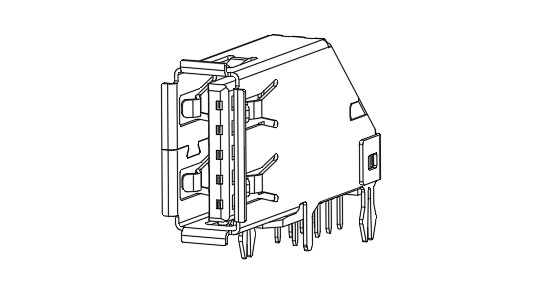

USB3.0 Flank Stand Type, A-Type, R/A DIP
產品型號
34009xxx-A00xH
產品敘述
Flank Stand Type, A-Type, 9Pin R/A DIP, 13.85H
Physical Characteristic:
1. Materials:
1.1. Housing: LCP+30% G/F, UL94 V-0; Color: Blue
1.2 Cover: LCP+30% G/F, UL94 V-0; Color: Blue
1.3 Contact: Copper Alloy
1.4 Shell: SUS304
2. Plating:
2.1 Contact: Gold plating on contact area;
Tin plating on solder area;
Nickel underplating overall.
2.2 Shell: Nickel plating overall
3. Electrical characteristics:
3.1 Insulation resistance: 100 MΩ Min.
3.2 Contact resistance: 30 miΩ Max.
3.3 Dielectric Withstanding Voltage: 100V AC for 1 minute
4. Mechanical characteristics:
4.1 Mating Force: 3.5kgf Max.
4.2 Unmating Force: 1.0kgf Min.
1. Materials:
1.1. Housing: LCP+30% G/F, UL94 V-0; Color: Blue
1.2 Cover: LCP+30% G/F, UL94 V-0; Color: Blue
1.3 Contact: Copper Alloy
1.4 Shell: SUS304
2. Plating:
2.1 Contact: Gold plating on contact area;
Tin plating on solder area;
Nickel underplating overall.
2.2 Shell: Nickel plating overall
3. Electrical characteristics:
3.1 Insulation resistance: 100 MΩ Min.
3.2 Contact resistance: 30 miΩ Max.
3.3 Dielectric Withstanding Voltage: 100V AC for 1 minute
4. Mechanical characteristics:
4.1 Mating Force: 3.5kgf Max.
4.2 Unmating Force: 1.0kgf Min.
