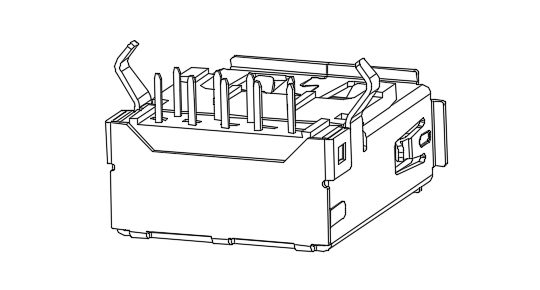

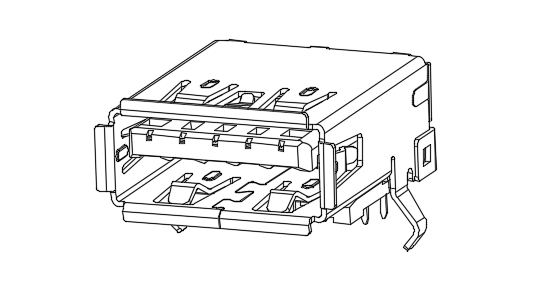

USB3.0 A-Type, R/A DIP

產品型號

33009xxx-21163xH

產品敘述

A-Type, 9Pin R/A DIP, 7.0H, 16.5L, 6.95H, DIP(2.5)


Physical Characteristic:
1. Material:
  1.1 Housing: PA6T,UL94V-0
  1.2 Contact: Copper alloy
  1.3 Shell: Copper alloy
2. Finish:
  2.1 Contact: Gold plated on contact area,
          matte Tin plated on solder tails,
          Nickel underplating over all.
  2.2 Shell: Nickel underplating over all.
3. Specification:
  3.1 Electrical:
      3.1.1 Contact Current Rating: 1.8A for pin 1 & pin 4
                          0.25A for others.
      3.1.2 Insulation Resistance: 100mΩ Min.
      3.1.3 Contact Resistance: 30 mΩ Max.
      3.1.4 Dielectric Withstanding Voltage: 500V/AC 1minute
  3.2 Mechanical:
      3.2.1 Mating Force: 3.57Kgf Max.
      3.2.2 Unmating Force: 1.0Kgf Min.
