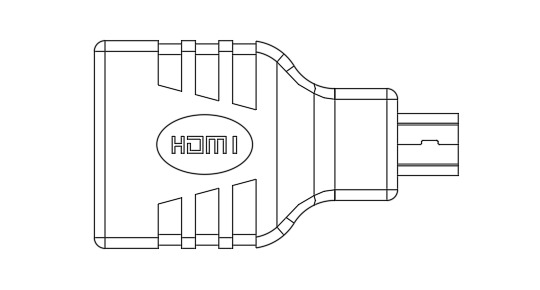

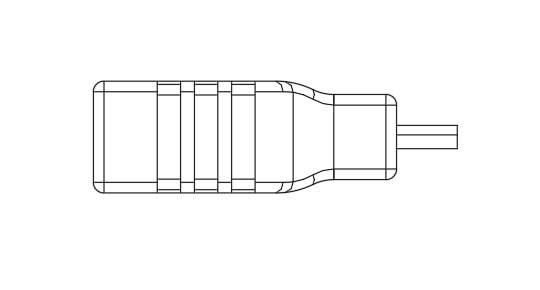

HDMI D-Type 19M to HDMI A-Type 19F Adapter
產品型號
5F1919-xxF0-10x
產品敘述
HDMI D-Type 19M to HDMI A-Type 19F Adapter
Physical Characteristic:
1. Materials & Plating:
1.1 HDMI A-type: 19(F) connector ; Contact: Gold flash ;
Shell: Gold flash; Insulator: Black (RoHS)
1.2 HDMI D-type: 19(M) connector ; Contact: Gold flash ;
Shell: Gold flash; Insulator: Black (RoHS)
1.3 PCB: FR-4; UL 94V-0 (RoHS)
1.4 Jacket: HDMI 19(F) SPCC Jacket; Gold flash (RoHS)
1.5 PVC: Molded 45 PVC black (RoHS)
1.6 Copper Foil: 20u" copper foil (RoHS)
3. Electrical characteristics:
3.1 Contact resistance: 5 mΩ Max.
3.2 Insulation resistance: 15 MΩ Min. at DC 300V
