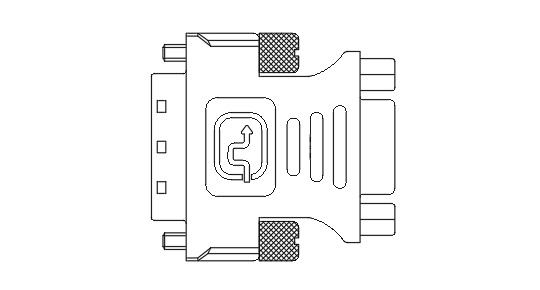

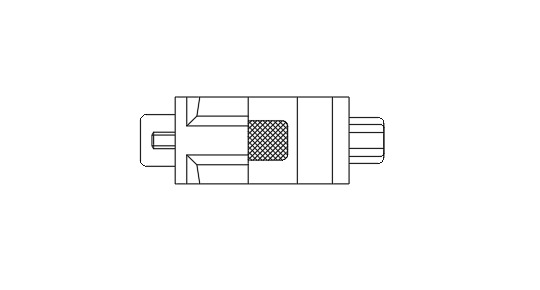

DVI 29M to VGA 15F Adapter
產品型號
5K2915xxx-B160xH
產品敘述
DVI 29M to VGA 15F Adapter, Screw(#4-40UNC)
Physical Characteristic:
1. Materials:
1.1 Housing: PBT+30% G.F. UL 94V-0;
HD-15F: Blue
DVI-29M: Black
1.2 Contact: Brass
1.3 Shield: SPCC
2. Plating:
2.1 Contact: Gold plated on contact area
2.2 Shield: Nickel plated overall
3. Electrical characteristics:
3.1 Current rating: 1.5 AMP. Max.
3.2 Insulation resistance: 10 MΩ Min. at 300V DC
3.3 Contact resistance: 3 mΩ Max.
3.4 Dielectric Strenght: 300V for 1 minute
4. Mechanical characteristics:
4.1 Durability: 500 cycles
4.2 Operating Temperature: -25ºC ~ +85ºC
5. Note:
5.1 Must be full 360º solder with copper
foil for connector after inner mold.
