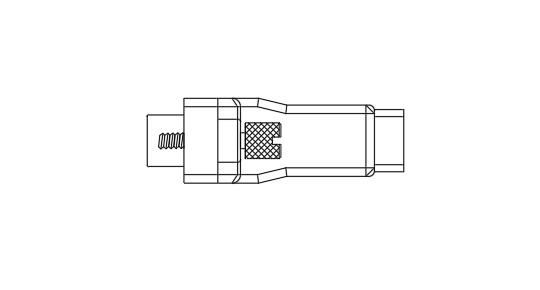

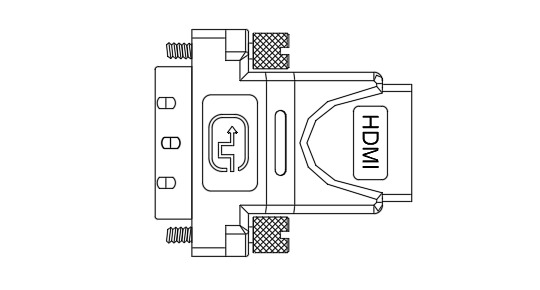

DVI 19M to HDMI 19F Adapter
產品型號
S-DVIx19-HDMI-xxH
產品敘述
DVI 19M to HDMI 19F Adapter, Screw(#4-40UNC; Ø6.3*20.1)
Physical Characteristic:
1. Materials & Plating:
1.1 DVI: 18+1(M) connector solder type contact Gold flash prevent EMI type.
Insulator black. Front shell Nickel plated back shell Tin plated (RoHS)
1.2 HDMI: A-type (F) connector solder type Gold plated 15u",
Insulator black. Shell Nickel plated (RoHS)
1.3 Hook Up Wire: UL 1061 28AWG*1C Tinned copper wire;
PVC Jacket Color: Red, Yellow, Black (RoHS)
1.4 Screw: #4-40UNC; Ø6.3*20.1mm, Nickel plated (RoHS)
1.5 Inside Molded: Low dendity PE (RolHS)
1.6 Over Molded: PVC 45P black (RoHS)
1.7 Copper Foil: 30*70mm (RoHS)
3. Electrical characteristics:
3.1 Contact resistance: 5 mΩ Max.
3.2 Insulation resistance: 15 MΩ Min. at DC 300V
3.3 360º double condutive copper apper inner and
360º welding molding.
