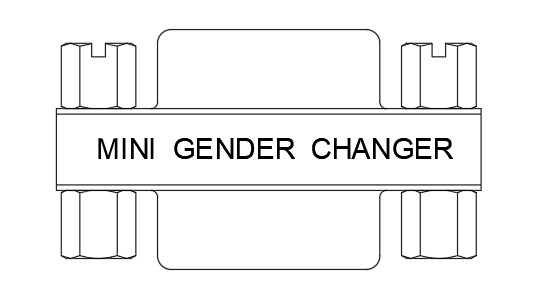

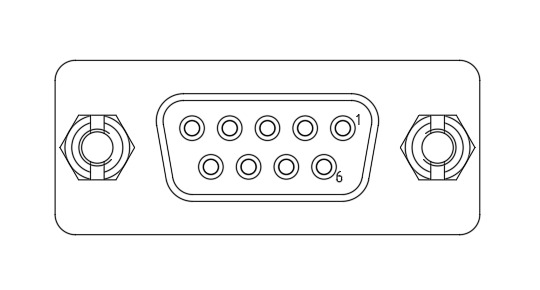

DB9F to DB9F Mini Adapter, (Straight Cable)
產品型號
5L0909xxx-0110xH
產品敘述
DB9F to DB9F Mini Adapter, (Straight Cable)
Physical Characteristic:
1. Materials:
1.1 Housing: PBT+30% G.F. UL 94V-0
1.2 Contact: Brass.
1.3 Shell: SPCC
1.4 Lable: Yellow color with black character
2. Plating:
2.1 Contact: Gold plated over Nickel
2.2 Shell: Nickel plated
3. Electrical characteristics:
3.1 Current rating: 3.0 AMP.
3.2 Insulation resistance: 1000 MΩ Min. at 500V DC
3.3 Dielectric Strenght: 1000V for 1 minute
4. Mechanical characteristics:
4.1 Operating Temperature: -55ºC ~ +105ºC
1. Materials:
1.1 Housing: PBT+30% G.F. UL 94V-0
1.2 Contact: Brass.
1.3 Shell: SPCC
1.4 Lable: Yellow color with black character
2. Plating:
2.1 Contact: Gold plated over Nickel
2.2 Shell: Nickel plated
3. Electrical characteristics:
3.1 Current rating: 3.0 AMP.
3.2 Insulation resistance: 1000 MΩ Min. at 500V DC
3.3 Dielectric Strenght: 1000V for 1 minute
4. Mechanical characteristics:
4.1 Operating Temperature: -55ºC ~ +105ºC
