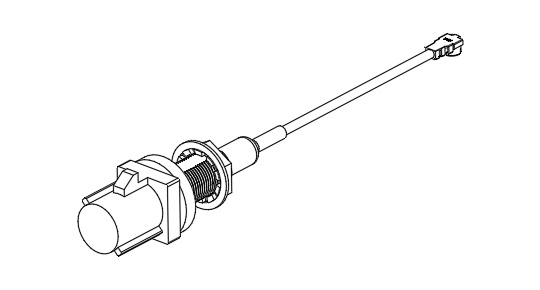

FAKRA SMB Bulkhead Male, Crimp Cable+IPEX
產品型號
GK000xxx-014x60H
產品敘述
Bulkhead Male, Crimp Waterproof+Cable+IPEX, 9.4SQ
Physical Characteristic:
1. Materials:
1.1. Housing: PA66
1.2 Insulator: PTFE; Color: White
1.3 Body: Copper alloy
1.4 Contact: Copper alloy
1.5 Ferrule: Copper alloy
1.6 Washer: Copper alloy
1.7 NUT: Copper alloy
1.8 Gasket: Silicone; Color: Black
1.9 Heat Shrink Tube: P.E. ; Color: Black
1.10 Cable: 1.13mm ; Color: Black
2. Plating:
2.1 Contact: Gold plating overall
2.2 Body: Nickel plating overall
2.3 Ferrule: Nickel plating overall
2.4 Washer: Nickel plating overall
2.5 NUT: Nickel plating overall
3. Electrical characteristics:
3.1 Impedance: 50 ohms.
3.2 Frequence rage: 0 - 6 GHz
3.3 Durability(Mating): 100 min
3.4 Plastic housing retention force: ≧110N
3.5 Temperature range: -40ºC ~ +105ºC; 260ºC / 10sec.
